CO-EXTRUSION FOR MULTI-LAYER STRETCH FLIM

SPECIFICATION OF LLDPE 3-LAYER STRETCH FILM MFG. LINE. THIS 3-LAYER CO-EXTRUSION LINE IS CONSISTED OF 3 SINGLE EXTRUDERS, T-DIE, CASTING ROLL AND OTHER DOWN STREAM FOR PRODUCTION 3-LAYERS STRETCH LLDPE FILM.

[ MODEL PLAMA PMEHY-8/11/8-3LSFL ]

1. MAJOR SPECIFICATION.

1) MODEL. PMEHY-8/11/8-3LSFL
2) APPLICABLE RESIN LLDPE & PE FILLER
3) PRODUCTION GOODS A/B /C 3-LAYERS STRETCH FILM
  • FILM WIDTH 2000mm (500mm * 4 EQUAL PARTS)/2200mm
  • FILM THICKNESS 15-20 μ
  • WINDING LENGTH 400-520meters
4) EXTRUDING CAPACITY
(IT CAN BE CHANGED ACCORDING TO THE MIXED
RESIN SITUATION AND FILM THICKNESS.)360 kgs/HOUR
5) LINE SPEED90-150 meters/minute
6) HEIGHT OF THE MACHINECENTER 4850mm
7) UTILITIES
(1) ELECTRIC POWER SOURCE220(380V) * 50 HZ * 3ø
(2) TOTAL POWER CAPACITY APPROX. 620 KW
  • TOLERANCE OF VOLTAGE AND FREQUENCY
    (TOTAL POWER CAN BE CHANGED ACCORDING TO
    THE BUYER’S CHOICE CONCERING MACHINE MECHANISM.)10%/+/- 1 HZ
(3) COOLING WATER
  • QUALITYNATURAL INDUSTRIAL WATER
  • PUMP PRESSURE2-3 kgf/cm2
  • COOLING WATER CONSUMPTION300 ltr/minute
(4) COMPRESSED AIR
  • AIR PRESSURE5-7 kgf/cm2
  • AIR CONSUMPTION1.5m3/HR APPROX
(5) ENVIRNMENT CONDITION OF THE WORKING AREA
  • TEMPERATURE15-40 ℃
  • HUMIDITY30-80%
8) SCOPE OF SUPPLY
(1) GROUNDING CONSTRUCTION
(2) ELECTRIC WIRING, PIPING CONSTRUCTION
(3) SPEECIAL OIL WHICH IS NOT LISTED IN OUR SPARE PART LIST
(4) SPARE ROLL & BEARING CASE WHICH NEED FOR ROLL
8) MACHINE COLOR; ACORDING TO THE REQUEST OF THE BUYER.
9) MACHINE DIMENSION (L * W * H)APPROX. 14m * 6.8m * 4.9m

2. COMPOSITION OF THE EQUIPMENTS.

NO. PART NAME SPEC OTHERS QUANTITY
1 1st SINGLE EXTRUDER 80mm INCLUDED AC MOTOR; 100HP 1 SET
2 2nd SINGLE EXTRUDER 110mm INCLUDED AC MOTOR; 150HP 1 SET
3 3rd SINGLE EXTRUDER 80mm INCLUDED AC MOTOR; 100HP 1 SET
4 T.I.C PANEL 34 ZONES 1 SET
5 CASTING ROLL UNIT 690 * 2700 1 SET
6 TAKE-UP & AUTO-WINDER 2500mm 1 SET
7 WATER CHILLER WITH AIR COOLIING 30RT 2 SETS
8 EDGE TRIMMING FILM EXTRUDER 90mm 1 SET
9 MIXER 1000kgs 3 SETS

3. ML-FILMS

  • ML-FILM1

  • ML-FILM2

4. MAIN PARTS OF MULTI-LAYER CO-EXTRUSION LINE

  • MULTI-LAYER LINE

  • CO-EXTRUDERS

  • CASTING ROLL LINE

  • FILM WINDER

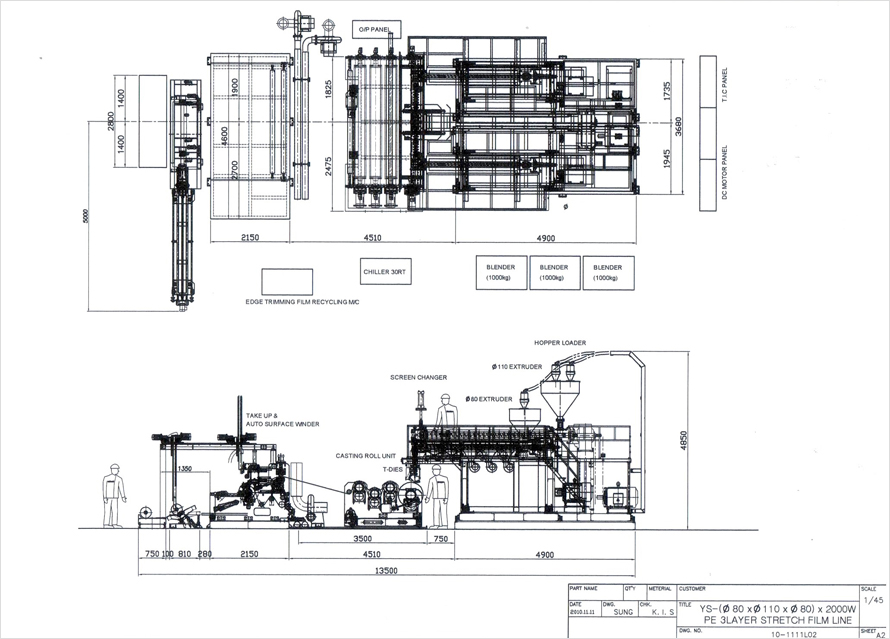

5. LAYOUT OF ML-STRETCH FILM EXTRUSION LINE

6. VIDEO CLIP FOR ML-STRETCH FILM EXTRUSION LINE.

  • 3L STRETCH FILM MC
